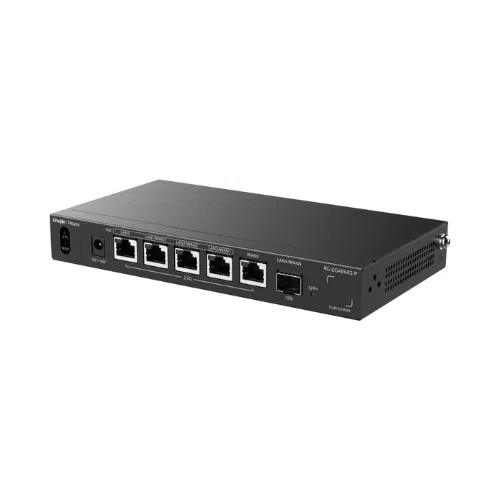

Router cân bằng tải 400 user ruijie RG-EG406XS

Loading...

Liên hệ

RG-EG406XS
– Thiết bị cân bằng tải 400 user, 6 cổng đa tốc độ (5x 2.5G + 1x SFP+ 10G), mở rộng 5 cổng WAN
– Hiệu năng cao: CPU Quad-core 2.0GHz, RAM 1GB, băng thông 2.5Gbps, cân bằng tải đa đường truyền
– Bảo mật mạnh mẽ: 100 kênh VPN, chống tấn công DDoS, ACL, IP-MAC binding, firewall toàn diện
– Quản lý linh hoạt: Ruijie Cloud, xác thực đa dạng (Portal, SMS, Voucher), kiểm soát truy cập
– Thiết kế nhỏ gọn: nguồn DC 12V, kích thước 202x108x28mm, hoạt động ổn định 0°C~40°C

Ưu đãi thêm khi mua thiết bị:

Thông tin sản phẩm

Router Cân Bằng Tải Ruijie RG-EG406XS: Siêu Phẩm Hiệu Năng Cho Doanh Nghiệp Tương Lai

Bộ Xử Lý Quad-core & 10Gbps SFP+ – Đột Phá Công Nghệ Cho Hạ Tầng Mạng Thế Hệ Mới

Trong kỷ nguyên chuyển đổi số tốc độ cao, khi doanh nghiệp đối mặt với nhu cầu xử lý dữ liệu khổng lồ và kết nối đa gigabit, Ruijie RG-EG406XS xuất hiện như một cuộc cách mạng thực sự. Với bộ xử lý Quad-core 2.0GHz, cổng SFP+ 10Gbps và khả năng xử lý 400 người dùng, thiết bị không chỉ đáp ứng nhu cầu hiện tại mà còn mở ra kỷ nguyên mới cho hạ tầng mạng doanh nghiệp tương lai.

Bộ Xử Lý Quad-core 2.0GHz & RAM 1GB – Sức Mạnh Xử Lý Đỉnh Cao

Kiến trúc phần cứng enterprise-grade vượt trội:

  • Quad-core Processor 2.0GHz: 4 nhân xử lý mạnh mẽ – như “4 động cơ” cùng hoạt động để xử lý đồng thời hàng ngàn kết nối
  • RAM 1GB High-Speed: Bộ nhớ hệ thống lớn gấp 4 lần thế hệ trước – đảm bảo hiệu suất ổn định cho 400 người dùng đồng thời
  • Multi-Task Processing: Xử lý đa nhiệm mượt mà – từ cân bằng tải, VPN đến bảo mật và quản lý ứng dụng
  • Future-Ready Architecture: Sẵn sàng cho các ứng dụng AI và machine learning trong tương lai

Cổng SFP+ 10Gbps & Multi-Gigabit – Kết Nối Thế Hệ Mới

Công nghệ kết nối đột phá cho tốc độ cực cao:

  • SFP+ 10Gbps Fiber Ready: Cổng quang 10Gbps – kết nối trực tiếp vào backbone fiber của doanh nghiệp với tốc độ siêu nhanh
  • 5 Cổng 2.5G Multi-Gigabit: Hỗ trợ tốc độ 2.5Gbps trên cổng đồng – gấp 2.5 lần chuẩn Gigabit thông thường
  • Total Throughput 2.5Gbps: Tổng băng thông xử lý lên đến 2.5Gbps – đáp ứng nhu cầu truyền tải dữ liệu cực lớn
  • Dual-Homed Connectivity: Kết nối đồng thời cả fiber và copper – linh hoạt cho mọi hạ tầng mạng

5 Cổng WAN Cân Bằng Tải – Kiến Trúc Kết Nối Tối Ưu

Hệ thống kết nối internet đa dự phòng tiên tiến:

  • Penta WAN Load Balancing: Kết nối đồng thời 5 đường truyền – tạo thành “mạng lưới an toàn” cho kết nối internet
  • Intelligent Load Distribution: Phân phối tải thông minh dựa trên thuật toán AI – tự động học hỏi và tối ưu hóa
  • Application-Aware Routing: Định tuyến thông minh theo ứng dụng – ưu tiên đường truyền tốt nhất cho từng loại dịch vụ
  • Millisecond Failover: Chuyển đổi dự phòng trong mili giây – đảm bảo zero downtime cho dịch vụ quan trọng

VPN 100 Kênh & 850Mbps – Hạ Tầng Kết Nối An Toàn

Giải pháp mạng riêng ảo doanh nghiệp cao cấp:

  • High-Density VPN 100 Channels: Hỗ trợ 100 kênh VPN đồng thời – kết nối an toàn cho hàng trăm chi nhánh và nhân viên từ xa
  • VPN Throughput 850Mbps: Tốc độ VPN lên đến 850Mbps – nhanh nhất trong phân khúc, đáp ứng truyền tải dữ liệu lớn qua VPN
  • Hardware VPN Acceleration: Tăng tốc phần cứng cho mã hóa VPN – đảm bảo hiệu suất cao mà không ảnh hưởng bảo mật
  • Multi-Protocol VPN: Hỗ trợ đa giao thức L2TP/IPSec/PPTP – tương thích với mọi thiết bị và hệ thống

Bảo Mật Tầng Network – Phòng Chống Tấn Công Toàn Diện

Hệ thống bảo mật network-layer tiên tiến:

  • DDoS Protection Advanced: Bảo vệ toàn diện trước tấn công DDoS – SYN Flood, UDP Flood, ICMP Flood Attack Guard
  • Attack Prevention System: Hệ thống ngăn chặn tấn công tự động – phát hiện và chặn các cuộc tấn công mạng trong thời gian thực
  • ICMP Redirection Protection: Bảo vệ chống tấn công chuyển hướng ICMP – ngăn chặn hijacking kết nối
  • Winnuke Attack Defense: Bảo vệ chống tấn công Winnuke – bảo vệ hệ thống khỏi các exploit cổ điển và hiện đại

Dynamic Routing OSPFv2/v3 & RIP/RIPng – Mạng Doanh Nghiệp Thông Minh

Hỗ trợ giao thức định tuyến động enterprise-grade:

  • OSPFv2/v3 Support: Hỗ trợ OSPF cho IPv4 và IPv6 – tự động tìm đường tốt nhất trong mạng phức tạp
  • RIP/RIPng Compatibility: Tương thích với RIP và RIPng – dễ dàng tích hợp với hệ thống mạng hiện có
  • Policy-Based Routing: Định tuyến dựa trên chính sách – kiểm soát chi tiết luồng dữ liệu theo yêu cầu nghiệp vụ
  • Automatic Network Optimization: Tự động tối ưu hóa mạng – thích ứng với thay đổi topology trong thời gian thực

Xác Thực Đa Phương Thức – Bảo Mật & Linh Hoạt

Hệ thống xác thực toàn diện cho nhiều kịch bản:

  • Portal Authentication Customizable: Portal xác thực tùy biến – tích hợp thương hiệu và yêu cầu bảo mật doanh nghiệp
  • Password Policy Advanced: Chính sách mật khẩu nâng cao – yêu cầu độ phức tạp và thay đổi định kỳ
  • Voucher Management System: Hệ thống quản lý voucher linh hoạt – theo thời gian, dung lượng hoặc băng thông
  • SMS Authentication Secure: Xác thực SMS bảo mật – kết hợp OTP cho truy cập an toàn

Quản Lý Đám Mây Thế Hệ Mới – AI-Powered Management

Nền tảng quản lý cloud với trí tuệ nhân tạo:

  • AI-Driven Analytics: Phân tích dựa trên AI – dự đoán xu hướng sử dụng và cảnh báo sớm sự cố
  • Predictive Maintenance: Bảo trì dự đoán – tự động đề xuất hành động trước khi vấn đề xảy ra
  • Automated Workflow Engine: Động cơ workflow tự động – tối ưu hóa quy trình vận hành mạng
  • Multi-Dimensional Monitoring: Giám sát đa chiều – từ hiệu suất, bảo mật đến trải nghiệm người dùng

Ứng Dụng Doanh Nghiệp Tầm Cỡ – Giải Pháp Tương Lai

RG-EG406XS được thiết kế cho các kịch bản triển khai cao cấp:

  • Data Center Edge: Gateway cho data center với kết nối 10Gbps và bảo mật enterprise-grade
  • Enterprise Headquarters: Trụ sở chính tập đoàn với nhu cầu kết nối multi-gigabit và VPN mật độ cao
  • Cloud Service Providers: Nhà cung cấp dịch vụ cloud cần cân bằng tải và bảo mật nâng cao
  • Financial Institutions: Tổ chức tài chính yêu cầu độ trễ thấp và bảo mật tuyệt đối
  • Research & Development Centers: Trung tâm R&D với nhu cầu truyền tải dữ liệu lớn và kết nối tốc độ cao

Nền Tảng Cho Kỷ Nguyên Số Tốc Độ Cao

Router cân bằng tải Ruijie RG-EG406XS không chỉ là thiết bị mạng mà là nền tảng chiến lược cho kỷ nguyên số tốc độ cao. Với bộ xử lý Quad-core mạnh mẽ, cổng 10Gbps tiên tiến và khả năng xử lý 400 người dùng, RG-EG406XS đặt ra tiêu chuẩn mới cho hạ tầng mạng doanh nghiệp. Đây là sự đầu tư thông minh cho những tổ chức không chấp nhận sự thỏa hiệp về hiệu suất, bảo mật và khả năng mở rộng.

Hãy cùng RG-EG406XS dẫn đầu trong kỷ nguyên kết nối tốc độ cao – nơi mọi giới hạn về hiệu năng đều bị phá vỡ và mọi cơ hội số hóa đều được nắm bắt!

Thông số kỹ thuật

Hardware Specifications
Port Specifications
Total number of optical ports 1
Total number of RJ45 ports 5
Number of 10/100/1000/2500BASE-T ports 5
Number of 10GE SFP+ ports 1
Maximum number of LAN ports 5
Maximum number of WAN ports 5
Number of fixed LAN ports 1
Number of fixed WAN ports 1
Number of LAN/WAN ports 4
LEDs 1 x system status LED 6 x Ethernet port LEDs
Reset button 1
System Specifications
CPU Quad-core processor, 2.0 GHz clock frequency per core
Flash memory 256 MB
RAM 1 GB
Power Supply and Consumption
Power supply DC power adapter
Dimensions of the DC connector Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10.0 mm (0.39 in.)
Maximum power consumption 9 W
Dimensions and Weight
Package dimensions (W x D x H) 278 mm x 229 mm x 77 mm (10.94 in. x 9.02 in. x 3.03 in.)
Product dimensions (W x D x H) 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.1 in.)
Shipping weight 1.28 kg (2.82 lbs)
Weight 0.61 kg (1.34 lbs)
Environment and Reliability
Cooling Natural cooling
Fan Fanless design
Mounting options Desk/Rack
Operating humidity 10% RH to 90% RH (non-condensing)
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage humidity 5% RH to 95% RH (non-condensing)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Surge protection Service port: ±4 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
Software Specifications
System Performance Capacity
Maximum number of concurrent sessions 120000
Recommended number of concurrent clients 400
Throughput 2500 Mbps
Basic Configurations
AC mode Yes
Automatically identifying the Internet access mode and obtaining IP addresses Yes
Automatically learning the PPPoE username and password of other routers Yes
Configuration backup Yes
Internet access mode Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE
Local upgrade Yes
Log upload Yes
Online upgrade Yes
Restoring factory defaults Yes
System language English, Chinese, Turkish, Arabic, Vietnamese, Thai, Indonesian, Latin American Spanish, Brazilian Portuguese, Russian, French, German, European Spanish, Italian, and Polish
Authentication
Portal authentication Yes
One-click authentication Yes
Password authentication Yes
SMS-based authentication Yes
Voucher authentication supported by Ruijie Cloud portal page Yes
Cloud portal authentication Yes
Local portal authentication Yes
QR code authentication Yes
Custom portal page Yes
Account-based authentication supported by Ruijie Cloud portal page Yes
CHAP, MS-CHAPv1, MS-CHAPv2 Yes
Delivery through Ruijie Cloud portal page Yes
802.1X authentication Yes
MAC address-based authentication Yes
PPPoE server Yes
Number of accounts supported by the PPPoE server 400
Number of concurrent clients supported by the PPPoE server 200
PAP Yes
RADIUS authentication Yes
RADIUS client Yes
RADIUS accounting based on time or traffic Yes
RADIUS flow control authorization Yes
RADIUS proxy server Yes
RADIUS traffic quota authorization Yes
RADIUS user group authorization Yes
Third-party authentication Yes
Ethernet Interface
Avoiding IP address conflicts on WAN interfaces Yes
Load balancing Yes
MAC address cloning Yes
Multiple WAN interfaces on the same network segment Yes
PPPoE clients Yes
Scheduled PPPoE reconnection No
Ethernet Switching
Configuring multiple VLANs upon configuration delivery No
Link aggregation No
LLDP No
VLAN Yes
Maximum number of VLANs 128
VLAN configuration supported on LAN ports Yes
Super-VLAN No
Configuring the same VLAN tag for multiple WAN ports No
VLAN priority Yes
Number of MAC address entries to be filtered 512
Gateway Features
WAN failover Yes
Application priority Yes
Application recognition Yes
Behavior management Yes
Flow control Yes
Time-based blocking policy Yes
IP address-based blocking policy Yes
Website filtering: custom URL Yes
Traffic audit Yes
URL audit log Yes
Audit log server Yes
Audit log storage No
Uploading audit logs to a server Yes
IP Routing
Application-based routing No
Bandwidth aggregation Yes
BGP Yes
BGP4 Yes
BGP4+ Yes
ECMP No
IPv4 static route Yes
IPv6 PBR Yes
IPv6 static route Yes
IS-ISv4 No
IS-ISv6 No
Load balancing based on flows Yes
Load balancing based on source IP addresses Yes
Load balancing based on the interface weight Yes
OSPFv2 Yes
OSPFv3 Yes
RIP Yes
RIPng Yes
IP Service
3322.org Yes
ALG Yes
ARP binding Yes
Maximum number of ARP entries 1024
Proxy ARP No
Cloudflare Yes
DHCP client Yes
DHCP server Yes
DHCP relay No
Option 43 Yes
Option 138 Yes
Static/Dynamic NAT Yes
NAT-PT No
NAT loopback Yes
DNS client Yes
DNS proxy Yes
DNS server Yes
No-IP DNS Yes
GRE tunnel No
IPTV Yes
IPv4 ping Yes
IPv6 Yes
IPv6 ping Yes
Number of port mapping entries 512
Port mapping Yes
DDNS Yes
Ruijie DDNS Yes
Alibaba Cloud DDNS Yes
UPnP Yes
MPLS
MPLS L2VPN No
Network Management and Monitoring
Web management Yes
Ruijie Cloud management Yes
Management on Ruijie Reyee App Yes
Remotely monitoring devices through Ruijie Reyee App Yes
Restarting devices through Ruijie Reyee App Yes
Upgrading device software version through Ruijie Reyee App Yes
Fault diagnosis Yes
FTP client (IPv4 address) No
FTP server (IPv4 address) No
TFTP client (IPv4 address) Yes
TFTP server (IPv4 address) No
HTTPS login Yes
NTP client Yes
NTP server No
Scheduled device restart Yes
SNMPv1, v2c, and v3 Yes
SON Yes
SSH No
Telnet No
Web login information Default IP Address: 192.168.110.1 Default Password: admin
Maximum number of managed devices (router mode) AP and NBS series: 200 ES series: 128 Note: The maximum number of managed devices varies with each device series.
Maximum number of managed devices (AC mode) AP and NBS series: 750 ES series: 128 Note: The maximum number of managed devices varies with each device series.
Reliability
Stacking No
VRRP No
SD-WAN
SD-WAN performance 750 Mbps
Number of tunnels supported by SD-WAN 300
Maximum number of SD-WAN branches 100
Active/Standby mode (automatically switching to the standby interface when the active interface fails) Yes
Security
ACL Yes
IPv6 ACL Yes
DHCP snooping No
Malformed packet attack defense Yes
Fragmentation attack defense Yes
Teardrop attack defense Yes
LAND attack defense Yes
SYN flood attack defense Yes
Smurf attack defense Yes
IP attack defense Yes
Disabling ping Yes
Stateful firewall Yes
IP-MAC binding Yes
Network sharing prevention Yes
Security log Yes
Security zone Yes
User group-based connection limiting Yes
VPN
IPsec VPN Yes
IPsec VPN bandwidth 700 Mbps
Maximum number of branches in IPsec VPN networking 100
L2TP VPN Yes
L2TP VPN bandwidth 850 Mbps
Maximum number of branches in L2TP VPN networking 100
OpenVPN Yes
OpenVPN bandwidth 200 Mbps
Maximum number of branches in OpenVPN networking 100
PPTP VPN Yes
PPTP VPN bandwidth 850 Mbps
Maximum number of branches in PPTP VPN networking 100
SSL VPN No
Easy VPN 1.0 No
Number of VPN accounts for L2TP, PPTP, and OpenVPN 400
WireGuard server Yes
WireGuard client Yes
WireGuard performance 750 Mbps
Number of concurrent tunnels supported by the WireGuard server 100
WLAN
Maximum number of APs (AC mode) 750
Maximum number of devices that can be managed 128
Wireless Intelligent Optimization (WIO) Yes
Package Contents
Rack-mount bracket 2
Power adapter 1
Rubber pad 4
Screw 6 x M3 x 6 mm cross recessed countersunk head screws
User Manual 1
Warranty Card 1
Xem thêm

Đánh giá Router cân bằng tải 400 user ruijie RG-EG406XS

Chưa có đánh giá nào.
